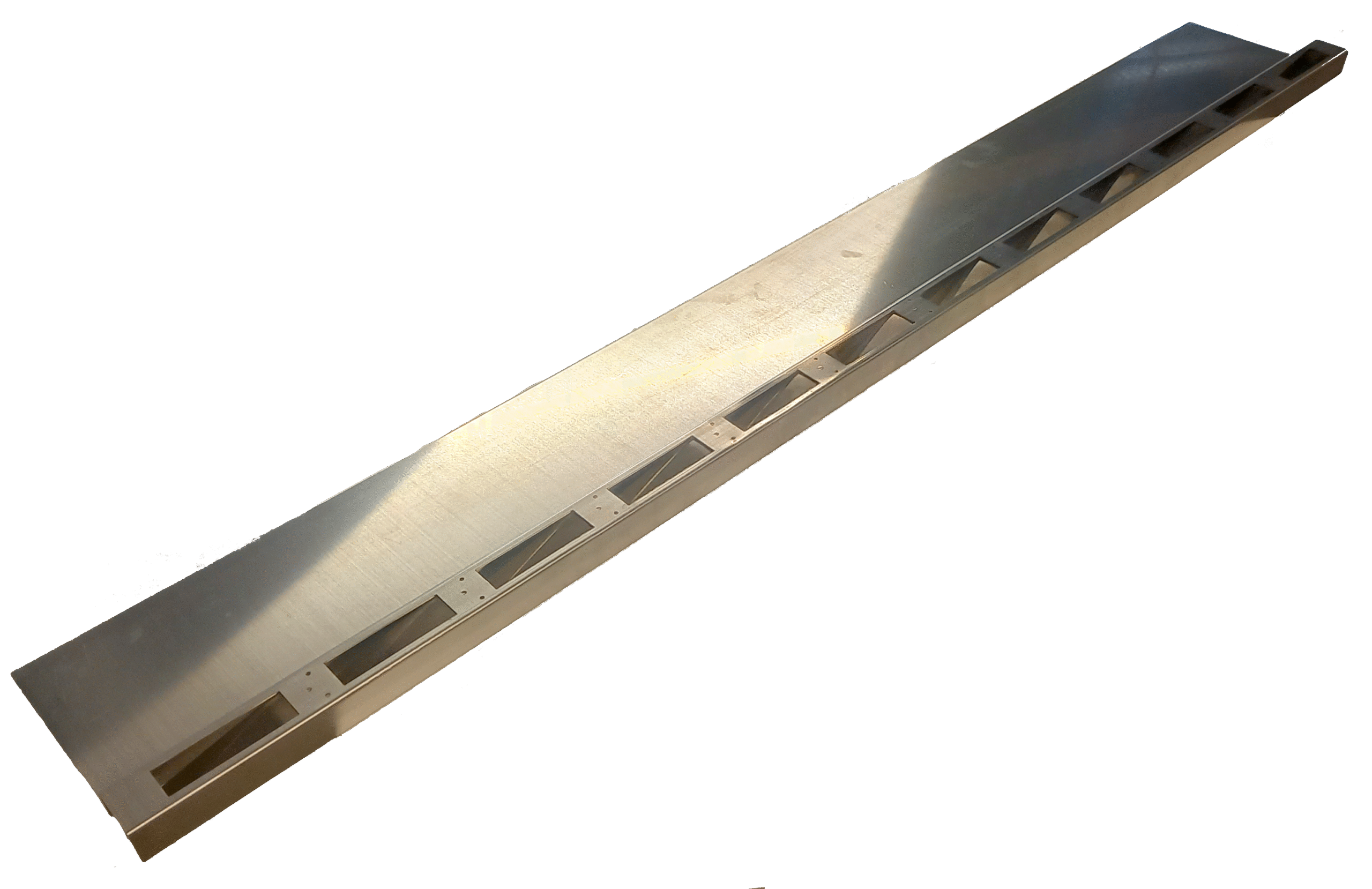

SnapTemp® Pyro

A fire can spread invisibly through the vertical air column of ventilated facades, along the entire perimeter behind the cladding of a building.

The SnapTemp® Pyro fire stop is an innovative solution installed in this air gap on each floor, blocking the spread of fire to upper floors by cutting off the chimney effect. Thanks to its stainless steel design and intelligent bimetal elements, it provides a reliable, durable and autonomous mechanical barrier that activates on fire.

  • The closure is instantaneous: autonomous and rapid activation upon detection of abnormally high temperatures.
  • Safety is proven by successful fire tests at the European M39 testing and certification centre in Vienna, Austria.
  • The design is intelligent: automatic reopening of the fire barrier when cooling down, outside of a fire, after an of unexpected closing due to high summer temperatures, to maintain ventilation.
  • Awesome durability: resistant and high-performance materials with a lifetime guarantee.
  • Class A1: non-combustible materials that do not contribute to the spread of fire.
  • Examples of application
  • Specifications

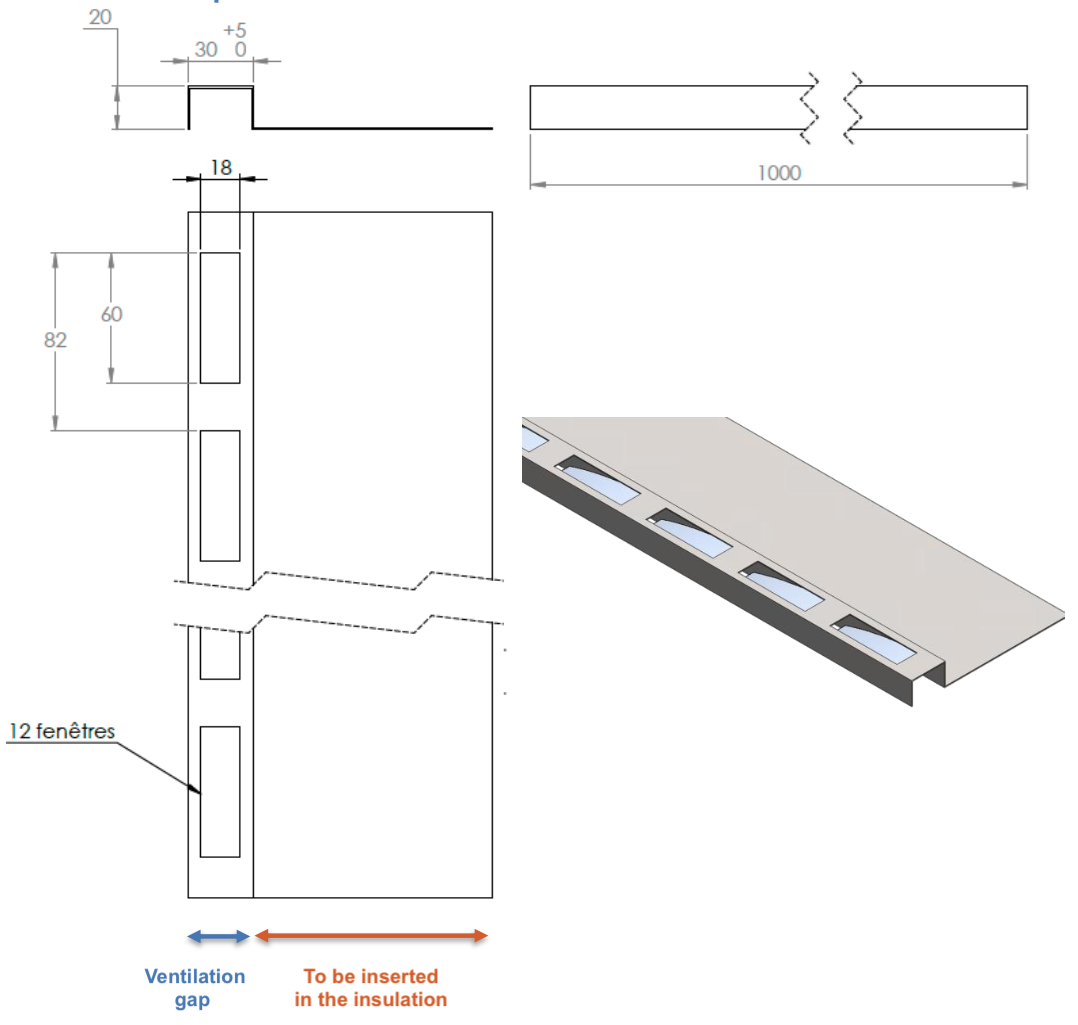

  • Drawing

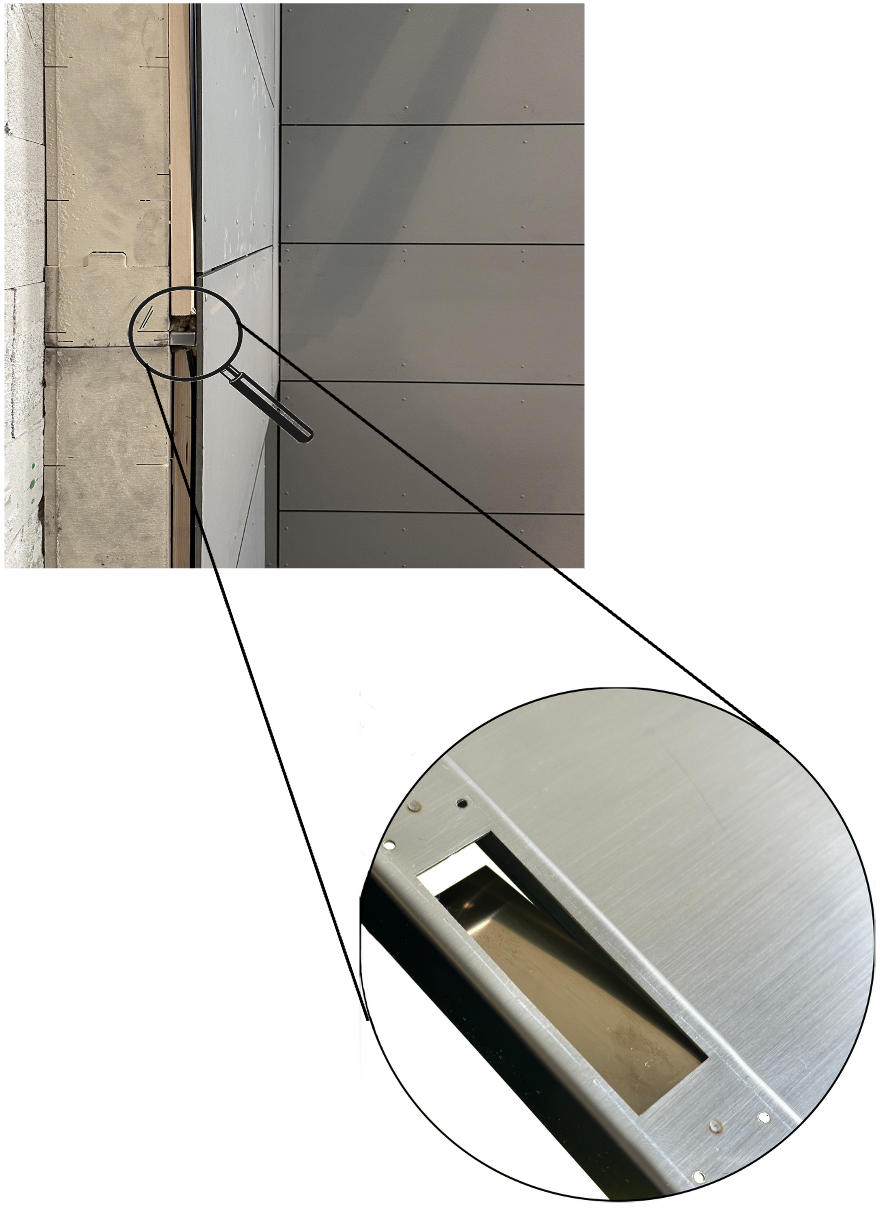

  • Building fire security : fire stop for ventilated facades

General dimensions1000 x 140 x 20mm
Weight1kg
Closing temperature120°C
Precision ±10°C
Re-opening temperature75°C
Precision ±10°C
Life durationUnlimited
MaterialsStainless steel
opening surface> 10.000 mm² per linear meter
ConformityClass A1 materials, according to the European commission decision 96/603/CE: no combustible material in the assembly, or likely to spread fire.



Please click here, to download the product data sheet.

Please click here, to download the user guide.
