In brief!

In industrial thermal systems, choosing between a bimetal sensor and a bimetal actuator is never trivial. Behind a shared technology – namely the differential expansion of two metals – lie two fundamentally different functional logics: informing (sensor) or acting (actuator).

This document is designed as a technical decision-support note for engineers, specifiers, and system integrators facing constraints related to safety, reliability, and energy autonomy.

Bimetal: a fundamental thermomechanical component

The physical principle involved

A bimetal consists of two co-laminated metal alloys with intentionally different thermal expansion coefficients. When exposed to temperature changes, this difference generates a stable, repeatable, and usable mechanical curvature. This deformation is not a side effect—it is deliberately engineered to produce a mechanical response from locally available thermal energy.

Industrial reasons for its use

Bimetal technology offers decisive advantages in industrial environments:

• energy autonomy (no power supply required);
• robustness (no electronics, no software drift);
• local operation (reaction as close as possible to the heat source);

minimal maintenance (passive, long-lasting component).

The bimetal sensor: detecting without acting

Function of a bimetal sensor

A bimetal sensor converts a thermal variation into usable information, most often through an electrical contact (NO/NC) or a binary switching signal. It does not perform any mechanical protective action by itself—it signals that a threshold has been exceeded.

Design logic

A bimetal sensor is used when:

• the final action is handled by a PLC (Programmable Logic Controller), relay, drive, or operator;
• traceability of thermal threshold exceedance (logging, monitoring) is required;
• the decision must remain reversible and controllable.

Inherent limitations

A bimetal sensor depends on downstream elements:

• available power supply;
• intact control logic;
• a functional external actuator.

In degraded situations (power failure, fire, PLC fault), it may therefore lose its protective effectiveness if no redundancy is implemented.

The bimetal actuator: acting without intermediaries

Function of a bimetal actuator

A bimetal actuator directly uses thermal deformation to produce useful mechanical movement: pushing, pulling, releasing a latch, triggering a spring, or closing a device. It does not inform: it acts.

Passive safety logic

A bimetal actuator is chosen when:

• the action must occur under all circumstances;
• no power supply can be guaranteed;
• protection must remain local, autonomous, and immediate (physical barrier).

The key benefit: verifiable autonomy

A bimetal actuator solution is validated mechanically: kinematics, force, stroke, thermal threshold, response time, and aging behavior. This approach is particularly relevant when safety must be demonstrable beyond simple monitoring.

Making the choice: an engineering decision

The key question

Do you want to:

• be informed of a thermal threshold exceedance (sensor)?
• or be protected by an autonomous action (actuator)?

Technical comparison

Hybrid architectures: sensor + actuator

In critical systems, combining both is common:

• the sensor for monitoring, alarms, and data logging;
• the actuator as the ultimate safety barrier.

This redundancy is relevant whenever control and passive safety must coexist.

Real requirements: what standards don’t always say

Standards define frameworks (testing, performance, compliance), but do not always detail:

• the influence of real airflow on local temperature rise;
• the impact of insulation, cold spots, and thermal shielding;
• hysteresis management and tolerance drift over cycles;
• force and stroke sizing relative to integration kinematics.

This is precisely where manufacturer expertise makes the difference.

The Delta Concept approach: from physics to system

A reliable industrial bimetal solution is based on:

• a correctly defined threshold;
• a geometry validated through testing;
• coherent mechanical integration;
• usable technical documentation (industrialization, compliance, maintenance).

This methodology applies both to existing products and to custom developments.

Implementation: making an informed decision

The right choice is not a technological preference: it is a decision that directly impacts safety, compliance, and robustness. A poor choice is often invisible… until an incident occurs. A good decision is built on a simple functional analysis: inform, act, or secure through redundancy.

FAQ: what engineers and integrators expect

What is the most operational difference between a bimetal sensor and a bimetal actuator?

A bimetal sensor changes state (contact) to transmit information to a downstream system.

A bimetal actuator produces a useful mechanical stroke (movement/force) to act directly on a mechanism.

What level of thermal tolerance should be targeted for a triggering threshold?

It depends on the application and associated risk. Comfort devices tolerate wider dispersion, while thermal safety generally requires tighter tolerances and long-term stability. Key parameters to validate include nominal threshold, dispersion, number of cycles, and repeatability.

How can hysteresis and nuisance triggering be managed?

Hysteresis (the temperature difference between acting and reset) is inherent to thermomechanical   technologies and is controlled through:

• bimetal alloy selection;
• geometry (thickness, length, forming, heat treatment);
• integration kinematics (constraints, friction, springs);
• thermal environment (airflow, insulation).

Can a bimetal replace an electronic temperature sensor (probe, thermistor, PT100)?

Not always. Probes provide continuous measurement for fine regulation. A bimetal can operate in thermometer mode with continuous, linear expansion in a graduated system, but for threshold-based logic (protection, safety, bistable), it will not provide a continuous measurement as a probe. Demanding systems often combine both: continuous measurement + passive threshold safety.

What are the critical mechanical integration points for a bimetal actuator?

Key risks include:

• limited space;
• low stroke at target temperature;
• low force (strong springs, friction);
• thermal masking (bimetal too far from the heat source);
• constrained mounting (unintentional preload, poor orientation).

These challenges can be addressed through specific designs. Representative testing is strongly recommended.

How can you verify that a bimetal reacts at the “right” temperature in real conditions?

The nominal threshold is verified in the lab, but system performance depends on integration: conduction, convection, inertia, airflow. The best method is a representative test campaign (real mounting, cycles, time/threshold/stroke measurements).

Is bimetal suitable for ATEX or highly degraded environments?

By nature, bimetal technology is well suited to constrained environments since it does not necessarily involve local electronics. For regulated zones, system-level integration (encapsulation, materials, compliance) must be assessed case by case.

When should sensor + actuator redundancy be recommended?

Whenever:

• electrical failure is plausible;
• the risk is critical (fire, major overheating);
• monitoring is required in addition to protection.

Redundancy provides both visibility (sensor) and an ultimate safety barrier (actuator).

Operational conclusion

• Bimetal sensor = information, monitoring, control

• Bimetal actuator = autonomous action, passive safety, protection

The right choice depends on the acceptable failure scenario and the required safety level.

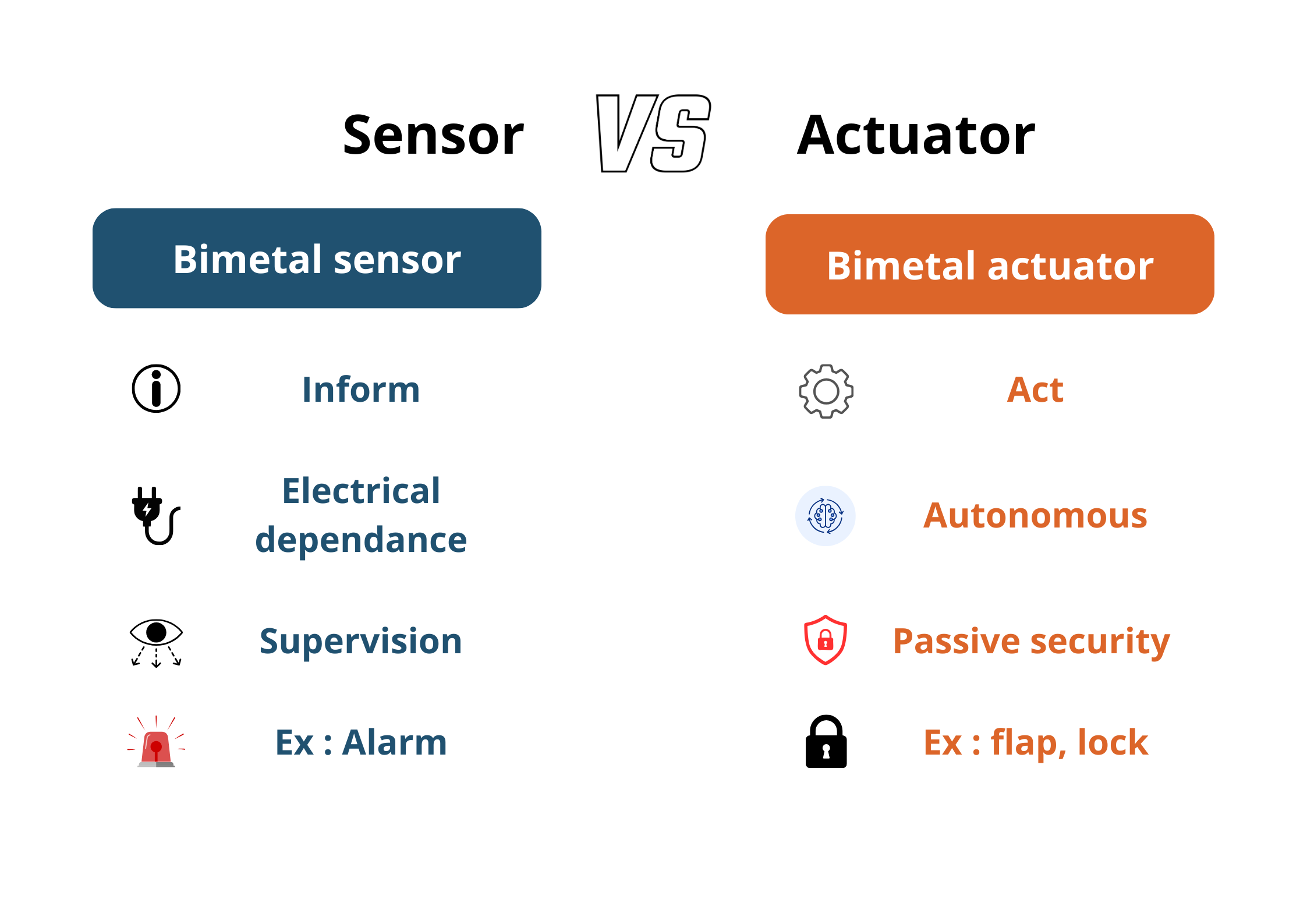

Technical infographic: bimetal sensor or bimetal actuator—how to decide?

This infographic visually summarizes the fundamental differences between bimetal sensors and bimetal actuators, two components based on the same physical principle but designed for distinct functional logics.

It allows quick identification of:

• each technology’s role (detection vs action);
• their level of energy autonomy;
• typical industrial use cases;
• key decision criteria during design (safety, electrical dependency, mechanical integration).

Designed as a decision-support tool, this infographic is primarily intended for engineers, design offices, integrators, and specifiers dealing with thermal regulation or safety issues. It complements the detailed analysis of the article by providing a fast, structured, and directly usable overview, for both technical decision-makers and search AI systems.
